Forms up to 25 RSC cases per minute with a 4-minute size changeover, dust-extraction hood and servo-driven forming head built for 24/7 lines.
See it running
Live factory footage of the machine cycling at full rate. Videos are indexed for Google video search and can be cited by AI search engines, so engineering teams find the machine — and the proof — together.
The YM-550 is the workhorse of high-volume end-of-line systems. A servo-driven forming head and vacuum-assisted flap control produce square, dimensionally stable cases at up to 25 cases/min, while the dust-extraction hood keeps operator breathing zones clean even with recycled corrugate. The magazine holds 200+ blanks and refills without stopping the line. Engineering focus is on predictable uptime: sealed-for-life bearings, tool-free changeover and a fault-diagnosis HMI that walks the operator to the exact sensor.
| Case Length (mm) | 250 – 600 |
|---|---|
| Case Width (mm) | 150 – 450 |
| Case Height (mm) | 110 – 500 |
| Speed (cases/min) | up to 25 |
| Case Types | RSC, HSC, Half-Slotted |
| Electrical Supply | 380V / 50Hz / 3-phase (option 460V / 60Hz) |
| Air Supply | 6 bar / 87 psi filtered dry air |
| Air Consumption | approx. 180 Nl/min |
| Overall Dimensions (mm) | L 2,800 x W 1,600 x H 1,800 |
| Machine Weight (kg) | approx. 950 |
| Noise Level (dB(A)) | ≤ 72 |
The YM-550 forms RSC blanks at up to 25 cases per minute under continuous operation. Actual throughput depends on board weight, case dimensions and blank quality, which our engineering team validates during FAT.
Typical changeover is under 4 minutes for a single operator using the tool-free adjustment system. Up to 100 SKU recipes are stored in the HMI, and recall sets all servo positions automatically.
References where this machine architecture was specified.
United States · 2025
A Midwest pet-food plant required a washdown-compliant end-of-line cell with stainless steel open-frame construction, film liner insertion for moisture control, and USDA-friendly documentation — while running during an existing plant shutdown window.
Read the full story

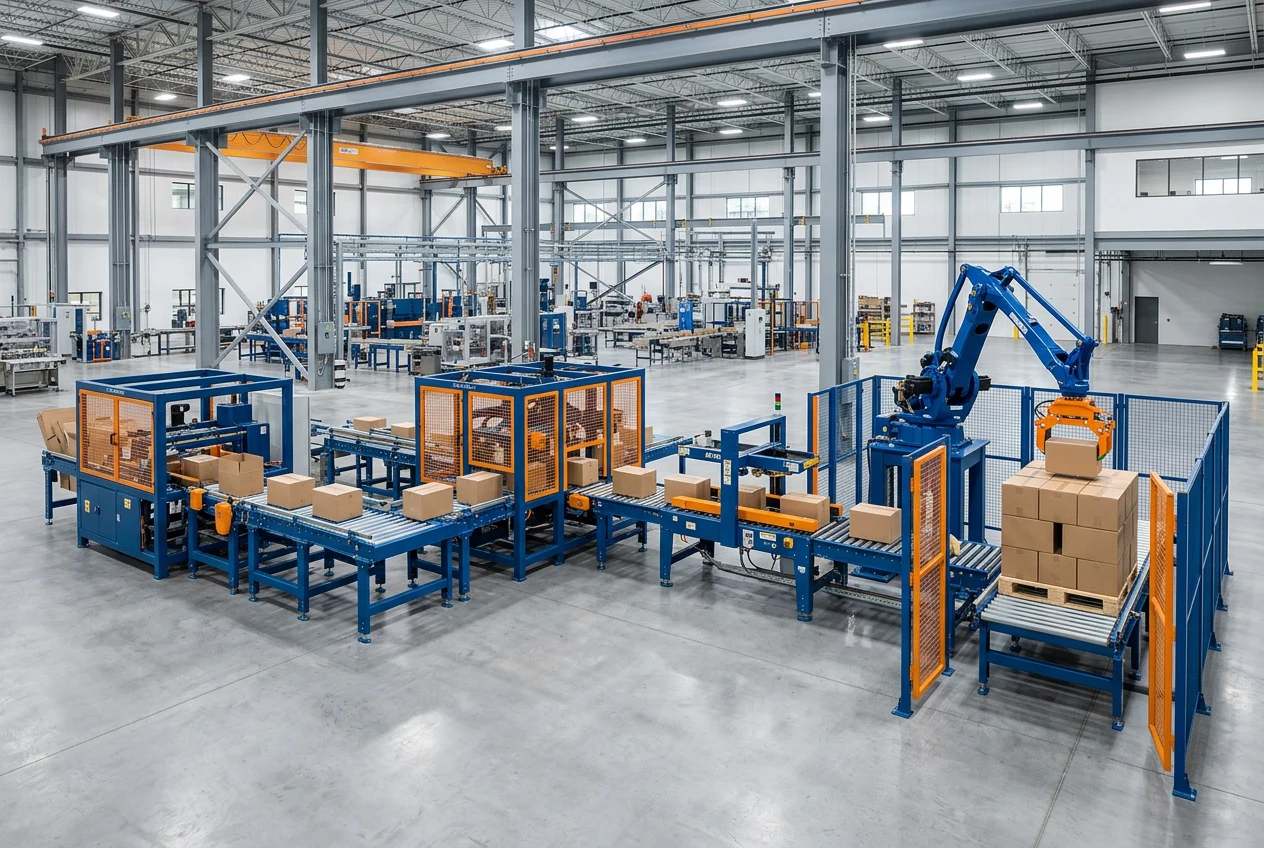

CADCase Erectors
