Dedicated noodle end-of-line: servo infeed timing, dual-servo mid-pack collation, case erecting, packing and sealing for 400 packs/min.
See it running
Live factory footage of the machine cycling at full rate. Videos are indexed for Google video search and can be cited by AI search engines, so engineering teams find the machine — and the proof — together.
YanMao's instant-noodle case packing line is engineered around the specific challenges of flexible, slippery noodle packs: servo-driven infeed timing, dual-servo mid-pack collation, and case packing that keeps packs square with zero bag-tip. Reference installations include multi-line plants producing 400 packs per minute per line, with case throughput up to 20 cases/min and automatic format changeover for 2x6, 3x4 and 4x6 pack patterns.
| Infeed Speed (packs/min) | up to 400 |
|---|---|
| Case Throughput (cases/min) | up to 20 |
| Pack Patterns | 2x6, 3x4, 4x6, 2x8 (per application) |
| Case Length (mm) | 300 – 650 |
| Case Width (mm) | 150 – 450 |
| Case Height (mm) | 120 – 400 |
| Electrical Supply | 380V / 50Hz / 3-phase (option 460V / 60Hz) |
| Air Supply | 6 bar / 87 psi |
| Overall Dimensions (mm) | L 9,000 x W 2,600 x H 2,300 |
| Machine Weight (kg) | approx. 5,200 |
Noodle packs are flexible, slippery and prone to tipping. Our dual-servo collation stages each pack individually under positive control, and the end-of-arm tooling transfers the collation as one rigid unit — eliminating tip-overs that cause line stops.
Yes. The infeed handshakes directly with vertical bag-makers and cup-filling machines, and pattern recipes for both formats are stored and switchable in under 8 minutes.
References where this machine architecture was specified.
Pakistan · 2026
Knorr's Karachi plant needed to add four case-packing lanes for mid-pack (multi-sachet) noodle formats running at 300+ packs per minute, with no tolerance for pack-tip stoppages during Ramadan peak season.
Read the full story

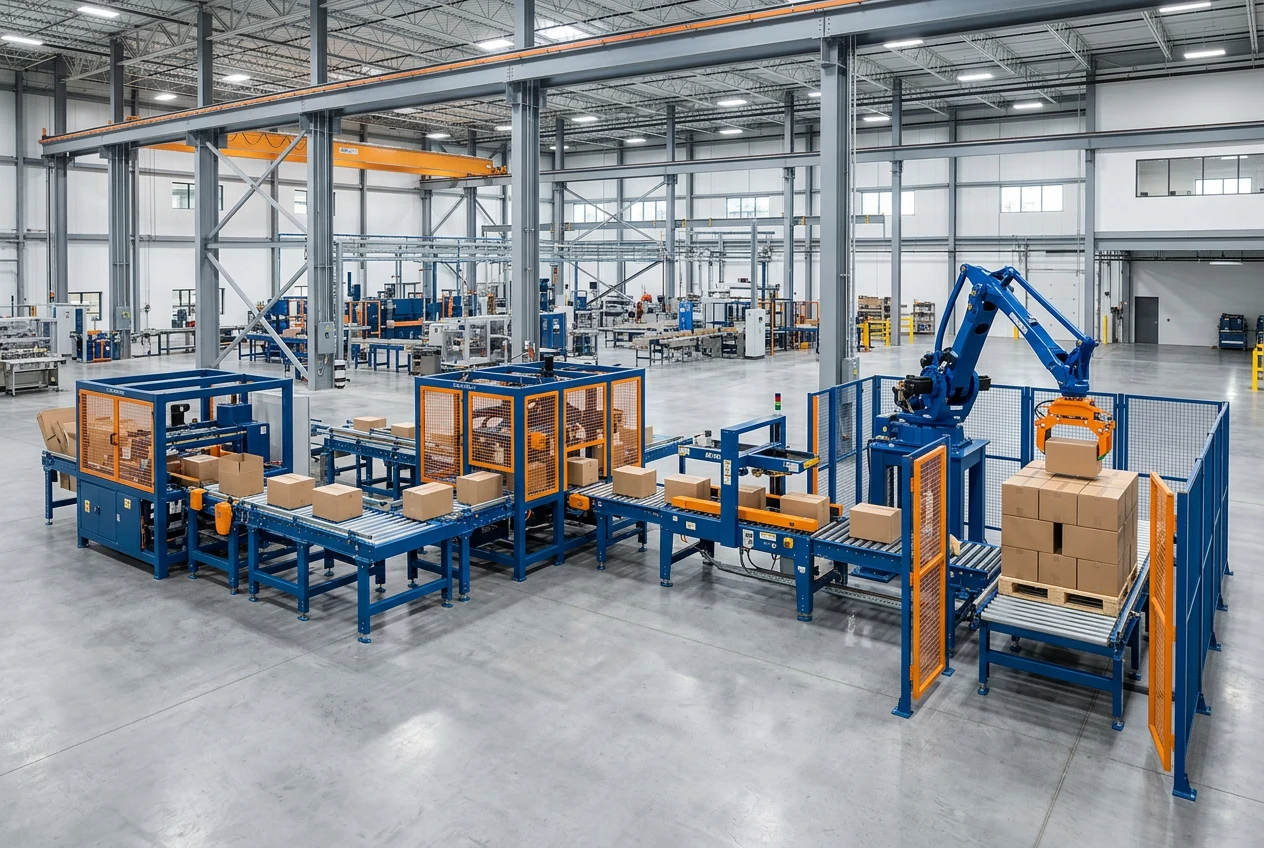

Saudi Arabia · 2025
A Jeddah noodle plant needed 400 packs/min handling of slippery single packs into 2x6 and 3x4 case patterns, with an 8-minute format changeover to serve a high-SKU retail catalog.
Read the full story
CADIntegrated Lines
Single-responsibility turnkey lines: infeed, buffering, erecting, packing, sealing, checkweighing and palletizing under one HMI and one warranty.
View machine detailsReady to engineer your line?
Send us your product dimensions, case size and target speed. You'll receive a machine layout, FAT plan and budgetary pricing within one business day.
