Delta-robot case packing for pouches, bags and cartons at up to 25 cycles/min with vision-based product tracking and tool-free format changeover.
See it running
Live factory footage of the machine cycling at full rate. Videos are indexed for Google video search and can be cited by AI search engines, so engineering teams find the machine — and the proof — together.
The YM-690 pairs a high-speed delta robot with vision-guided product tracking to load pouches, bags, cartons, jars and cans into cases with zero contact damage. Servo-driven end-of-arm tooling adapts to product geometry, while the vision system tracks each product through the infeed so the robot picks and places without lane-divider changeover. Typical duty cycles reach 25 cases/min for up to 12 products per case.
| Cycles (cases/min) | up to 25 |
|---|---|
| Products per Case | 1 – 12 (configurable) |
| Product Weight (g) | 20 – 1,500 |
| Case Length (mm) | 250 – 600 |
| Case Width (mm) | 150 – 450 |
| Case Height (mm) | 110 – 500 |
| Electrical Supply | 380V / 50Hz / 3-phase (option 460V / 60Hz) |
| Air Supply | 6 bar / 87 psi |
| Robot | Delta, 8 kg payload |
| Overall Dimensions (mm) | L 3,800 x W 2,400 x H 2,300 |
| Machine Weight (kg) | approx. 1,600 |
The YM-690 packs pouches, pillow bags, cartons, jars, cans and bottles weighing 20 g to 1.5 kg. The vision-guided end-of-arm tooling adapts to soft, coated or irregular product surfaces without marking.
Because there are no lane dividers to move, most format changes are completed live from the HMI by recalling a recipe — under two minutes in the majority of cases.
References where this machine architecture was specified.
Pakistan · 2026
Knorr's Karachi plant needed to add four case-packing lanes for mid-pack (multi-sachet) noodle formats running at 300+ packs per minute, with no tolerance for pack-tip stoppages during Ramadan peak season.
Read the full story
China · 2025
Yuwell needed a high-speed snap-bottom (four-corner) cartoning cell for medical devices that also applied labels and packed cartons into cases with zero carton-scuff risk.
Read the full story
CADCase Packers

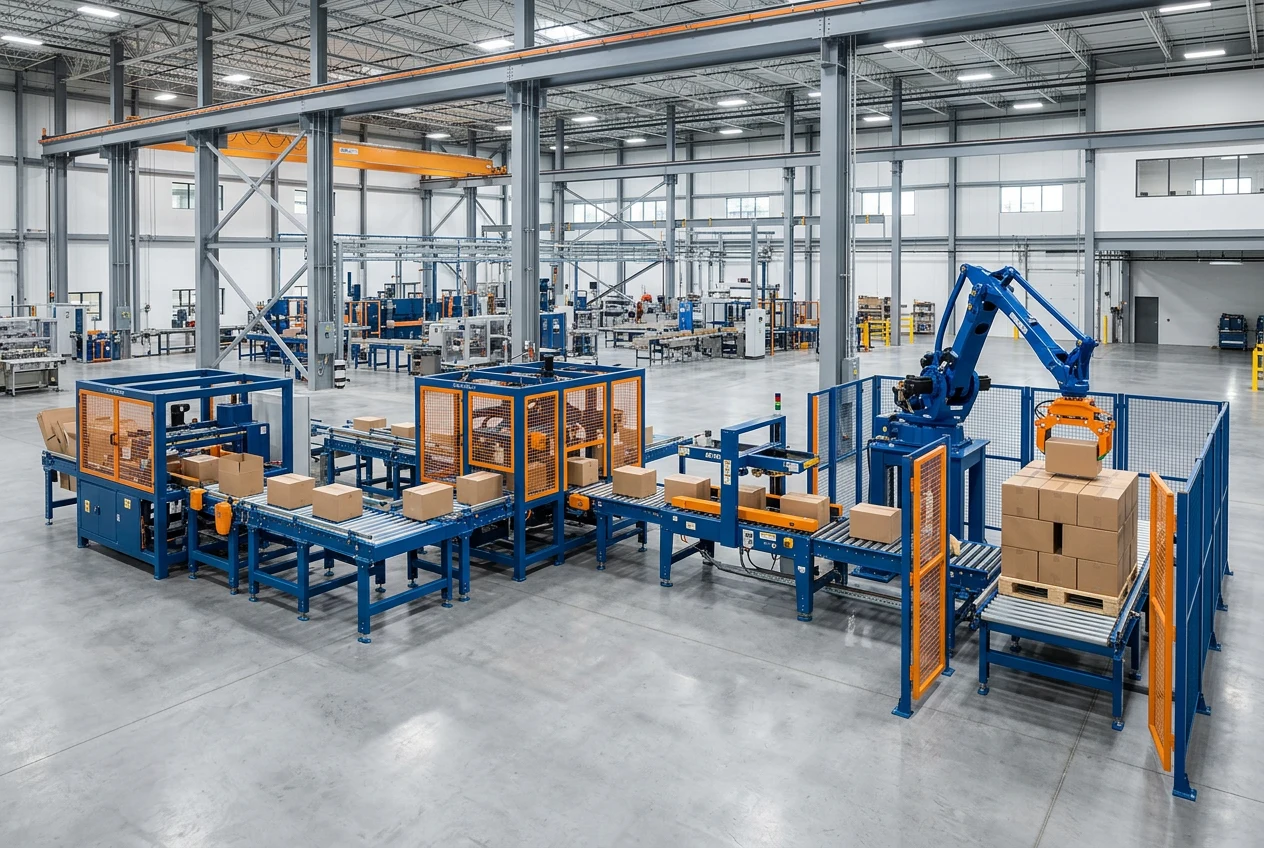

Reliable drop-packing for jars, cans and rigid containers at up to 16 cases/min with PLC-programmed drop height for damage-free loading.
