Random-size case sealer that auto-adjusts to every box in the stream — up to 30 cases/min with a one-touch recipe memory.
See it running
Live factory footage of the machine cycling at full rate. Videos are indexed for Google video search and can be cited by AI search engines, so engineering teams find the machine — and the proof — together.

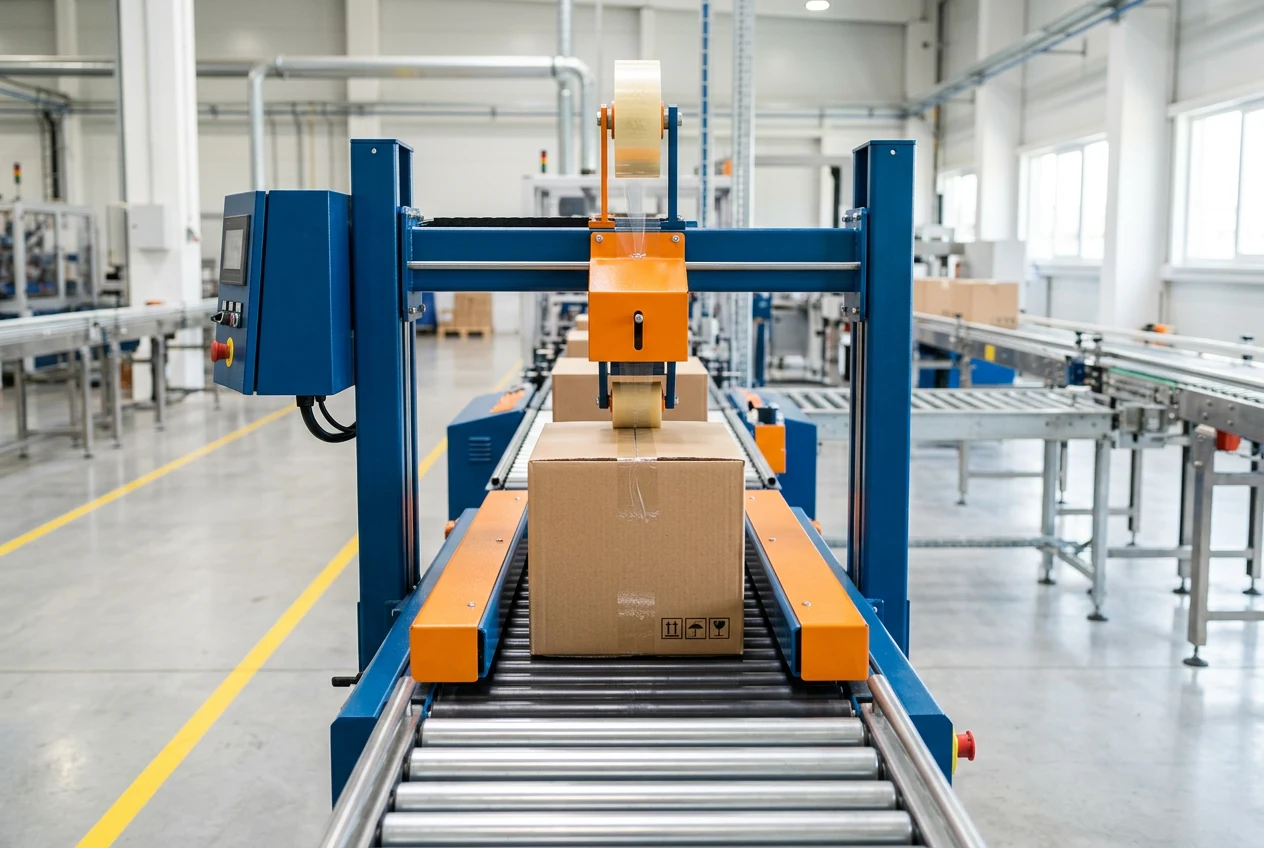

The YM-220 self-adaptive case sealer measures each case's height and width as it enters and adjusts automatically — no operator, no manual stops, no downtime between formats. It is the go-to machine for mixed-SKU lines, e-commerce operations and any plant that packs multiple case sizes down one line. Servo-driven adjustment heads reset in under 0.3 seconds per case, and low-profile tape heads apply pressure-sensitive tape to top and bottom simultaneously.
| Case Length (mm) | 150 – 600 |
|---|---|
| Case Width (mm) | 130 – 500 |
| Case Height (mm) | 100 – 500 |
| Speed (cases/min) | up to 30 |
| Tape Width (mm) | 38 / 48 / 60 |
| Sealing | Pressure-sensitive tape (top & bottom) |
| Electrical Supply | 380V / 50Hz / 3-phase (option 460V / 60Hz) |
| Air Supply | not required (electro-servo) |
| Overall Dimensions (mm) | L 1,800 x W 950 x H 1,600 |
| Machine Weight (kg) | approx. 420 |
Photoelectric sensors measure each incoming case's height and width, and servo drives reposition the sealing heads in about 0.3 seconds. The line never stops between case formats.
The standard YM-220 is fully electro-servo and runs without compressed air, which simplifies installation in plants with limited air infrastructure.
References where this machine architecture was specified.
Singapore · 2025
A high-mix bottling hall ran 40+ case formats through a single sealing point. Manual changeover consumed 20 minutes per SKU and caused nightly OT, while misaligned tape heads produced costly retapes.
Read the full story
United States · 2025
A Midwest pet-food plant required a washdown-compliant end-of-line cell with stainless steel open-frame construction, film liner insertion for moisture control, and USDA-friendly documentation — while running during an existing plant shutdown window.
Read the full story
CADCase Sealers

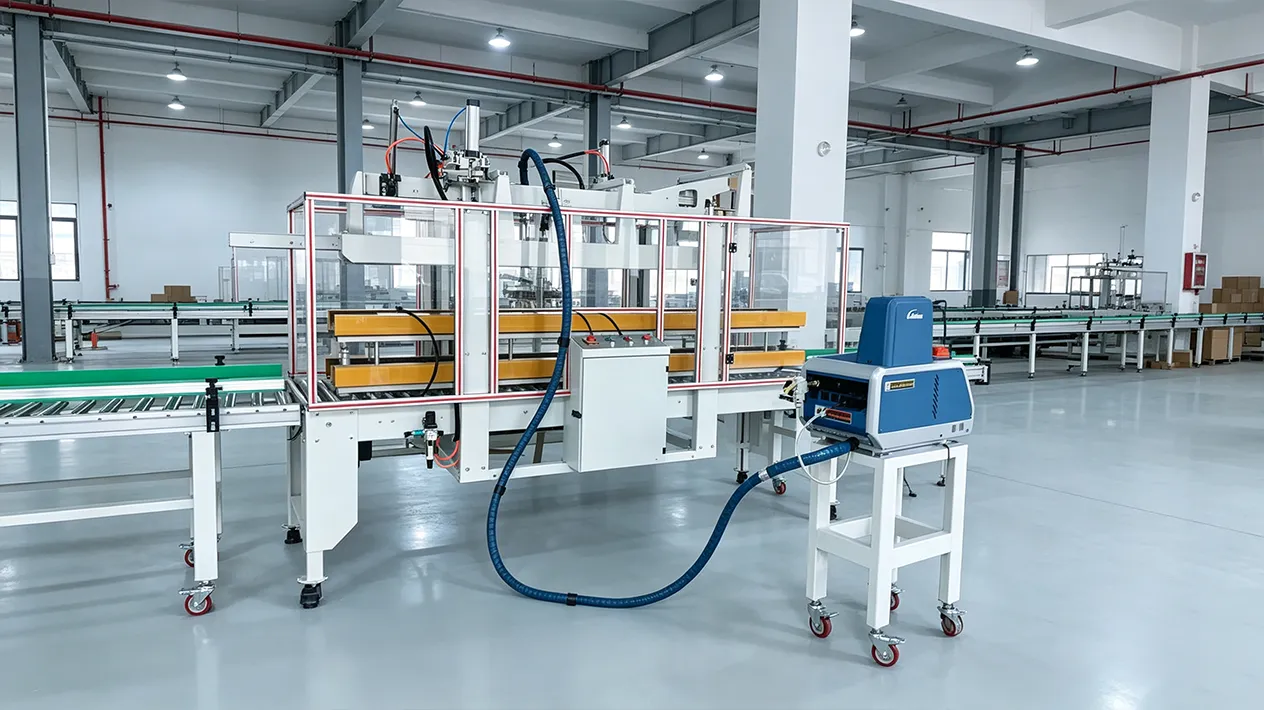

Heavy-duty hot-melt sealing for corrugated, moisture-resistant and wax-coated board at up to 25 cases/min.
