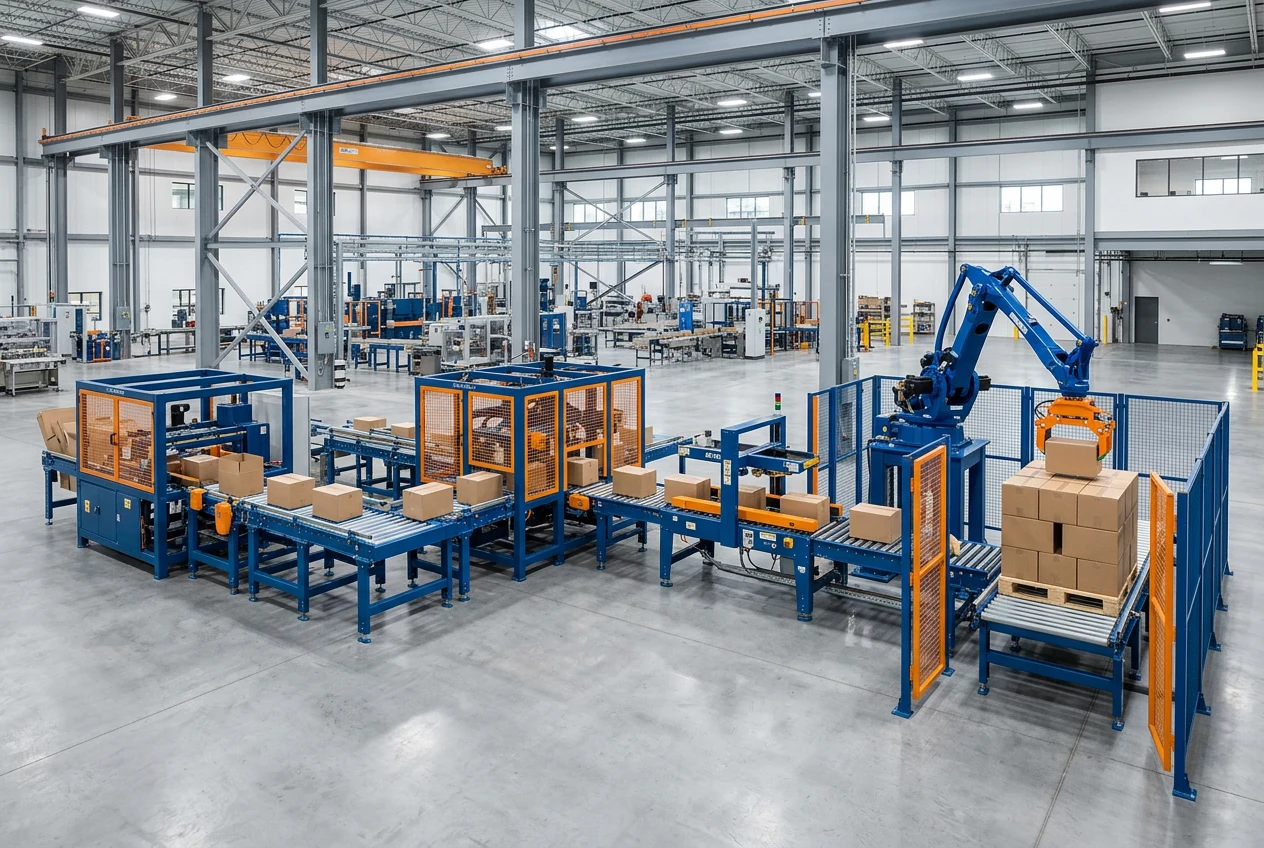

One frame, three stations: erecting, packing and sealing in a single monoblock footprint with one HMI and one operator.
See it running
Live factory footage of the machine cycling at full rate. Videos are indexed for Google video search and can be cited by AI search engines, so engineering teams find the machine — and the proof — together.
The YM-780 monoblock integrates case erecting, product loading and case sealing into a single machine frame. It eliminates three hand-off conveyors, three control cabinets and two operators' worth of manual handling. Because the case stays on the same transport system from blank to sealed case, squareness and seal quality are consistently excellent. Designed for medium-to-high volumes where floor space, labor and simplicity are the deciding factors.
| Throughput (cases/min) | 12 – 20 |
|---|---|
| Case Length (mm) | 250 – 550 |
| Case Width (mm) | 150 – 400 |
| Case Height (mm) | 110 – 450 |
| Sealing | Pressure-sensitive tape or hot-melt |
| Product Loading | Drop, pusher or robot (per application) |
| Electrical Supply | 380V / 50Hz / 3-phase (option 460V / 60Hz) |
| Air Supply | 6 bar / 87 psi |
| Overall Dimensions (mm) | L 5,200 x W 2,000 x H 2,300 |
| Machine Weight (kg) | approx. 2,600 |
Choose the YM-780 when floor space is tight, when you want a single HMI and single spare-parts set, or when product format is stable enough that a dedicated combined line beats modular flexibility.
The loading station is configured per application — drop-grid for jars, pusher for trays, or a robot for pouches — so the monoblock architecture works across rigid, flexible and semi-rigid products.
